IPP19WM945 - Industrial 19" Panel PC
Feature
19" Panel PC (4:3), with touch screen.
Resolution up to 1024x768, 250nits, 500:1
Resistive Touch Screen
I/O ports: PS2 KB/Mouse, GbE LAN x2, COM port x2, USB port x6, PCI Slot x1
2.5" HD space, Slim optical drive
DOM (Disk on Memory module) (option)
Stereo Side Speakers with 12 watts Amps
| IPP19WM945 SPECIFICATIONS |
| Processing |
|
| Processor |
T5450 Core2Duo 1.66GHz |
| Mainboard |
MI945PR |
| Memory |
2GB |
| Storage |
DOM (16~32G-SSD or CF) (option) |
| Storage |
250GB-HDD 2.5 |
| Storage (selectable) |
2.5 inch 40GB / 80GB / 160GB / 320GB and up or SSD 1G / 2G / 4G / 8G / 16G / 32G and up or Compact flash 2.0GB / 4.0GB / 8.0GB / 16GB and up |
| I/O |
1xSerial 232(DB9M),1xSerial 422 or 232
LPT(DB25F)(optinnal), 8xUSB2.0
KB/MOU(PS2), 2x Gigabit Ethernet |
| Watchdog timer |
256 levels |
| Connectors |
|
| Motherboard specs |
| Mainboard name |
MI945PR (Intel Socket P, 667/800/1066 FSB, Core2Duo ) |
| Processor |
Intel Mobile Core2Duo 1.6Ghz/2M cache FSB 667 Mhz Processor |
| System Chipset |
Intel GM45 + ICH9M
Video graphic processor Intel GMA X4500 |
| System Memory |
SO-DIMM DDR2 module x2, 4.0GB |
| BIOS |
Award 8Mbit |
| Ethernet |
Intel 82567LM
Marvell 88E8053 Gigabits Lan Ethernet |
| Audio |
ICH9M integrated audio HD 7.1 with ALC888 |
| Serial |
4 x RS-232 ( COM2 can be configurable to RS-422/485 ) |
| USB |
6 x USB 2.0 |
| KB / Mouse |
2 x PS/2 |
| Display Screen |
 |
| Type |
TFT LCD 19" BackLight |
| Visible Screen |
376.32 x 301.66 mm |
| Resolution |
1280 x 1024 (native) 4:3 |
| Dot Resolution |
0.294 X 0.294 |
| Brightness |
300nits, 800:1 LED |
| TouchScreen |
|
| Touchscreen |
analog 5 Wire Resistive |
| Film Type |
Polished, Anti-glare or Anti-reflective |
| Response time |
35ms max, Edge compensation |
| Input Method |
Finger, pen, or gloved hand |
| Touch Durability |
35 millions times single location |
| Surface Scratching |
1 Million times (250gf 60mm/s) |
| Surface Pitting |
35 Million times (250gf 2 times/s) |
| Light Transmission |
Standard 80% |
| Operating Systems |
MS-DOS, Windows, Linux etc |
| Operating System (Opt) |
Windows XP Professional / Embedded / WePOS/POS2009 Ready |
| Chassis |
|
| Unit |
450 x 350 x 108 mm (17 x 13 1/2 x 4 1/4) (W x H x D) |
| Mounting |
Wall-Mount (back holding clamp) or VESA 75 or 100 |
| Power source |
|
| Internal |
250 Watts universal 100~240 volts ACapplications). |
| Operating |
|
| Operation Environment |
-20 ~ 60°C |
| Storage Temperature |
-30 ~ 70°C |
| Humidity |
60C, 90% RH 280 HR |
| Weight Informations |
25 < LB in Ready to ship / Packed (1 box)
20
< LB Main units |

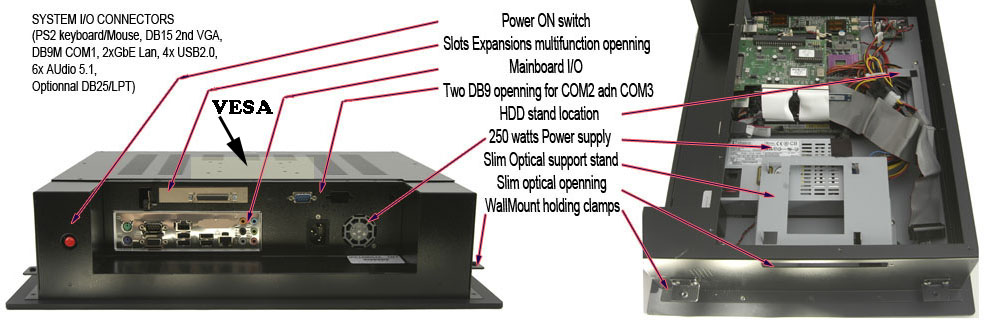

All wires and connectors are hidden under a plate and back.
 |
|
Order Information
IPP19WM-MI945 - 19" All-in-one Industrial Panel PC with touch screen and MI945PR, Memory, CPU, HDD |
|
|
|
|
|
