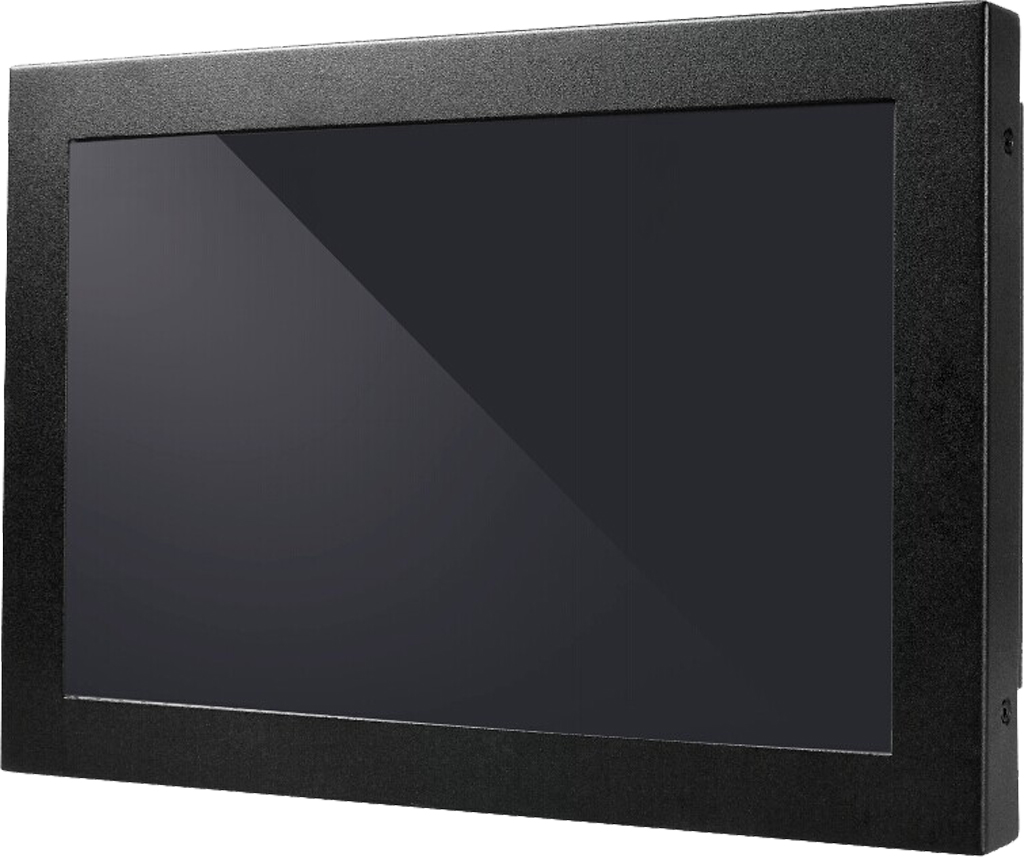

Panel

Panel Spec

AUO G170ETN01.0

Size/Type

10.1”with LED backlight

Resolutions

1280 x 800

Brightness

250 cd/㎡

ContrastRatio

500:1

Response time

6ms

Viewing angle

170/170

Touch

Touch panel style

5 wires analog resistive

Active Range

337.00 x 269.50mm ±0.2mm

Temperature Range

-10 ~ +60℃(Operating)

Transparency

80 ±3%

Surface Hardness

≧ 3H (ASTM D3363, pressure 750g/45°)

Operating Force

≦ 80g

Knock test

10,000,000 times keystrokes

Case

Panel Material

Aluminum

Case Material

Iron

Color

Black

Coating Requirement

Spray Paint

Protection grade（IP）

IP65

Speaker

2-CH(3W)

Bracket

6 (Top:2pcs、Side:4pcs, Optional)

Installation Type

Open Frame / Wall Hanging（Optional）

Cooling Mode

Fan less Fully sealed design

System Specification

CPU

INTEL® Cedar Trail-M Processor N2600 (1.6GHz)

Chipset

INTEL®NM10 Express chipset

Memory

1 * DDR3 800MHz Single CH SO-DIMM up to 2GB (Optional)

Expansion Slots

1 * Mini PCI-E

LAN

2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN

Audio

Realtek ALC662 HD Audio CODEC with 4-Channel

Storage

1* Serial ATA2 3Gb/s connector
1 * CFast card socket

BIOS

AMI 16MB SMT Flash ROM

Form Factor

3.5” SBC (148mm x 102mm)。

Product size

259.67 (W) * 177.4 (H) *81.1 (D) mm

Specs Devices

1 x 2.5”HDD(Optional)

Colors

Black

Left &Right

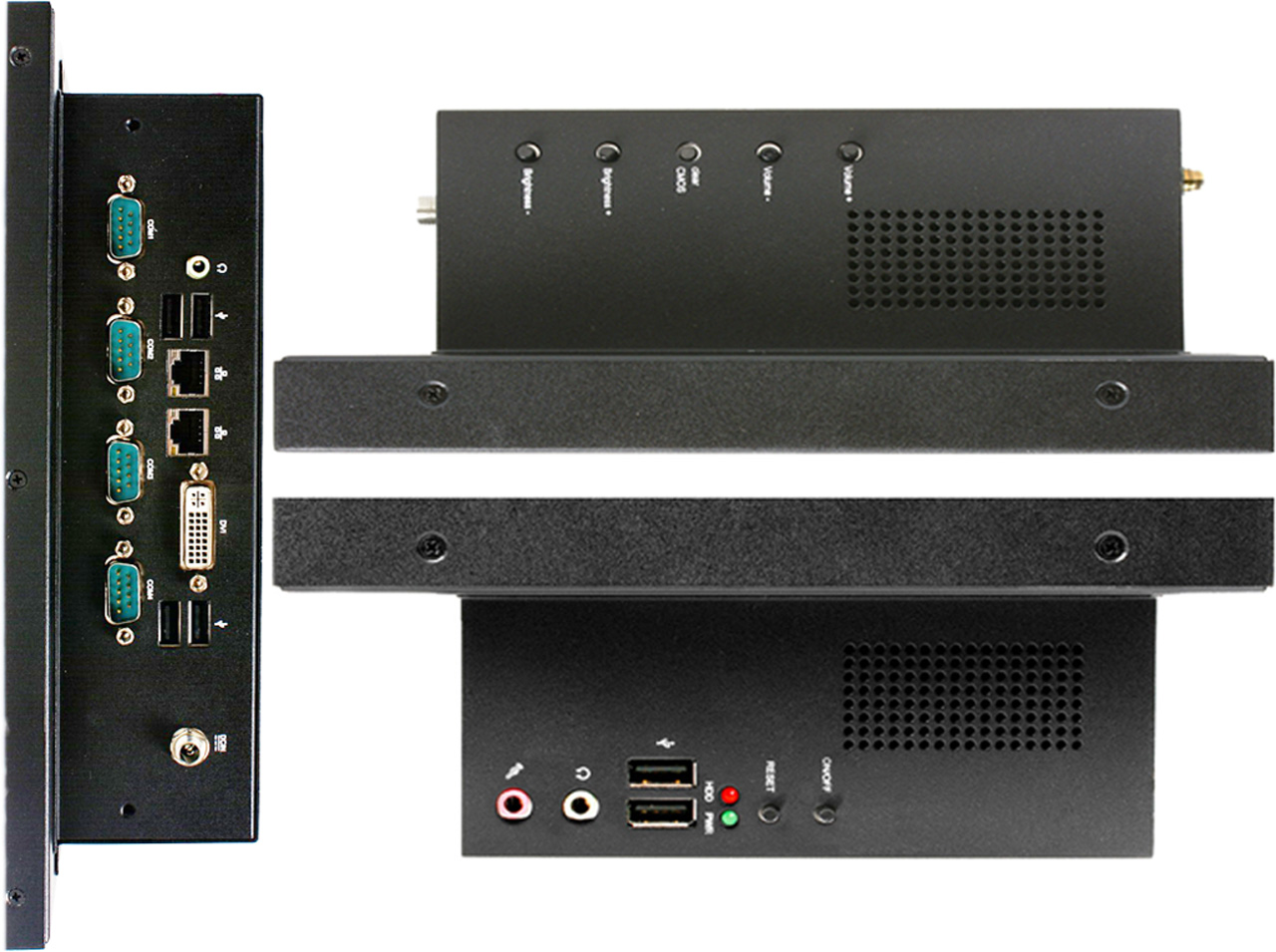

 I/O Port

1 * Power button
1 * Reset button
2 * Volume button
2 * Line-OUT
1 *MIC jack
2 * Brightness button
2 * USB 2.0 ports
1 * clear CMOS button
2 * Antenna holes
2 * Speaker
Power & HDD LED

Bottom I/O Port

4 * USB 2.0 ports
 1 * 12V DC jack
2 * RJ-45 port (Gigabit LAN)
4 * COM ports
1 * DVI-I port

Power supply

+12V DC-IN Power

Accessory

60W AC-DC Lockable Adapter x 1
Power Cord x 1
CD x 1
Manual x 2
WI-FI antenna * 2

 Packing

Color Box Dimension：

330 (W) x 345 (H) x 163 (D) mm

Gross Weight：

2.94 KG

Net Weight：

1.9 KG
