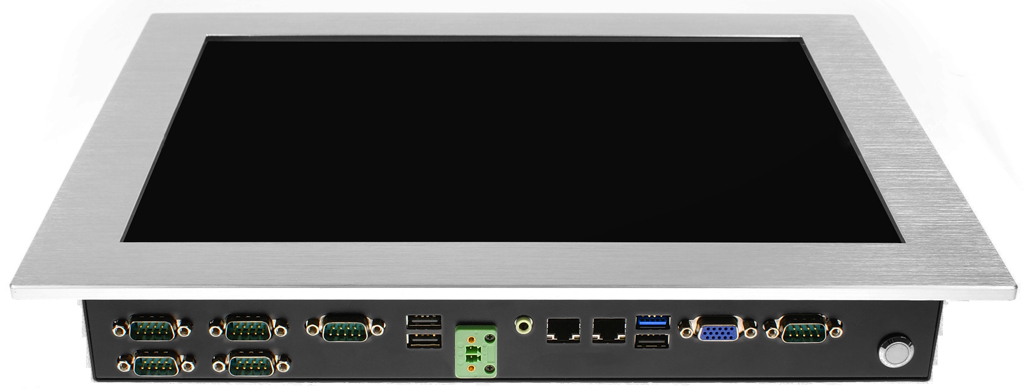

PanelPC Solution - 15 series - HPC-150BR-2930F-4G
JBC365F3A-2930-B

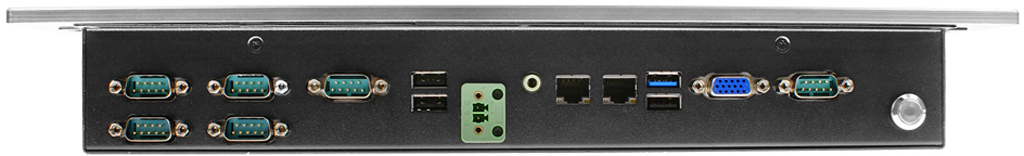

I/O

Features:
  1. INTEL® BayTrail--M N2930 SOC Chip
  2. Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  3. Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  4. Support DirectX 11 3D Graphics Acceleration
  5. Support 1*Serial ATAII(3Gb/s) Devices
  6. Support Dual INTEL® Gigabit LAN
  7. Support CRT Output
  8. Equipped with 802.11 b/g/n WIFI card & External Antenna
  9. Support 6* COM ports（COM2/COM3 Support RS422/485）
  10. Support 2.5” SATA HDD
  11. Support 1*M-SATA Socket
  12. Support 1*Mini PCI-E Socket
  13. Support 3* USB2.0 Ports
  14. Support 1* USB3.0 Port
  15. Support 3G SIM Card
  16. Support slick design
  17. VESA mount(100mm X100mm &75mm x 75mm)

PDFTechnical Documentation
PDFDatasheet

Panel
Panel Spec AUO G150XTN03.0
Viewable Size Image 150 inch With LED Backlight
Active Area 304.128(H) x 228.096(V)
Resolution 1024 x 768 @60Hz
Display Color 262K
Pixel Pitch 0.297 x 0.297 mm
Aspect Ratio 4:03
Contrast Ratio 700:01:00
Max Brightness 350 cd/m²
Viewing Angle(H/V) H170/V160
Response Time 5.7ms
Temperature Range 0 ～ +65℃(Operating)

Touch
Touch panel style 5 wires analog resistive
Active Range 304.10 x 228.10mm ±0.2mm
Temperature Range -10 ~ +60℃(Operating)
Transparency 80 ±3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes

Case
Panel Material N/A
Case Material Iron
Color Black
Coating Requirement Spray Paint
Protection grade（IP） IP65
Speaker 2-CH(3W)
Bracket 6 (Top:2pcs、Side:4pcs, Optional)
Installation Type Open Frame
Cooling Mode Fan less Fully sealed design

System Specification
Form Factor 4”
Processor INTEL® BayTrail-M N2930 1.83GHz/QC
System Chipset INTEL® BayTrail-M N2930 (SOC)
System Memory 4G/1333MHz DDR3L SAMSUNG DRAM
BIOS 64MB SPI Flash ROM
Ethernet 2*INTEL® I211AT Gigabit LAN
Audio Realtek®  ALC887 HD Audio
Storage 1* Serial ATA2 3Gb/s connector
1* M-SATA connector
WIFI Module N/A(Option)
Optical Device N/A
Expansion PCI-E mini card for WLAN
Display Output CRT
I.O Port 1*USB3.0、3*USB2.0、4*RS232、
2*RS232/422/485、1*Line-out
Power Adapter DC-IN (9~24V,Euro terminal block)
OS Support Windows 7/8/8.1
Temperature Operating：-10 ~ +60℃
Humidity 20%~90% (non condensing)
Shock Operating：15G，11ms duration
Vibration  Operating：5~500Hz/1 Grms
Net Weight (kg) 　
Dimension 376.0mm*300.0mm*54.0mm
Certification FCC   CE
Other Support Non wire I.O interface output

Other Information
Application Commercial、Banking、Digital Signage
POS/KIOSK、Industrial Automation
Special Features Metal design, compact、slick
Other Optional wall hanging telescopic bracket, etc., can also be used as the embedded security

Ordering Information:

HPC-150BR-2930F-4G
15"with LED backlight 1024 x 768 350 cd/㎡ 5 wires analog resistive 376mm*300mm*54mm
