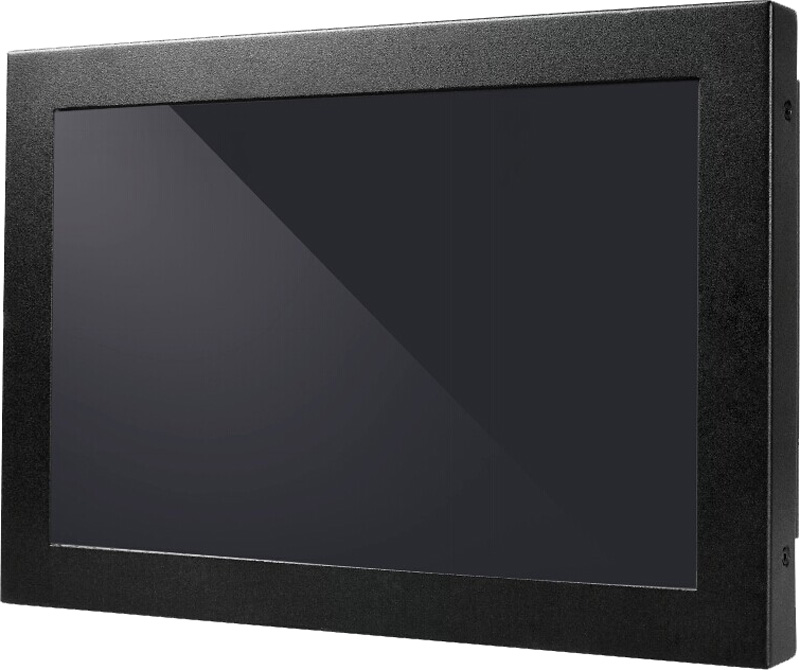

Model No

HPPC-150F36P-2600B

Panel Specification

Size/Type

  15”with LED backlight

Resolutions

  1024 x 768

Brightness

  350 cd/㎡

Contrast Ratio

  700:1

Response time

  6ms

Viewing angle

  170/160(H/V)

Touch

 Projected Capacitive Multi Touch with 4 points

Motherboard Specification

CPU

  INTEL® Cedar Trail-M Processor N2600 (1.6GHz)

Chipset

  INTEL®NM10 Express chipset

Memory

  1 * DDR3 800MHz Single CH SO-DIMM up to 2GB (Optional)

Expansion Slots

 1 * Mini PCI-E

LAN

 2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN

Audio

  Realtek ALC662 HD Audio CODEC with 4-Channel

Storage

 1* Serial ATA2 3Gb/s connector
  1 * CFast card socket

BIOS

 AMI 16MB SMT Flash ROM

Form Factor

 3.5” SBC (148mm x 102mm)。

Product size

 358.9 (W) * 281.9 (H) *73.2 (D) mm

Specs Devices

 1 x 2.5”HDD(Optional)

Colors

 Black

Left &Right

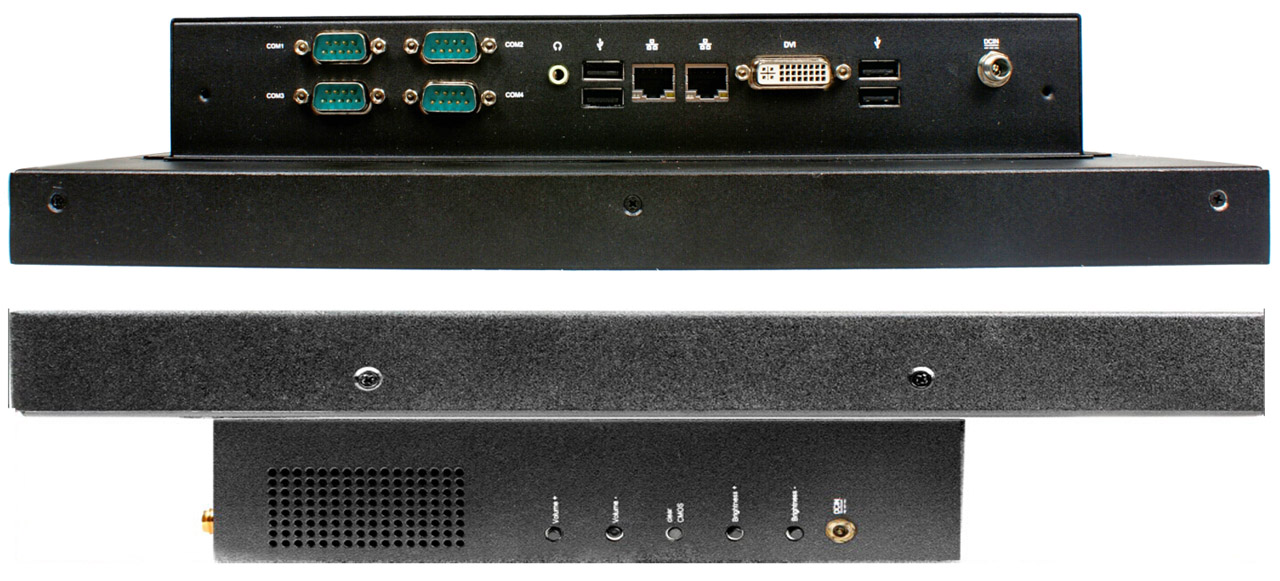

 I/O Port

 1 * Power button & 1 * Reset button          2 * Volume button + & -
 2 * Line-OUT & 1 *MIC jack                 2 * Brightness button + & -
 2 * USB 2.0 ports                          1 * Clear CMOS button
 2 * Antenna holes                          2 * Speaker
 Power & HDD LED

Bottom I/O Port

 4 * USB 2.0 ports                            1 * 12V DC jack
 2 * RJ-45 port (Gigabit LAN)                   4 * COM ports
 1 * DVI-I port

Power supply

 +12V DC-IN Power

Accessory

 60W AC-DC Lockable Adapter x 1            Power Cord x 1
 CD x 2                                    Manual x 2
  WI-FI antenna * 2

Packing

 Color Box Dimension：400 (W) x 460 (H) x160 (D) mm
 Gross Weight：5.23  KG              Net Weight： 3.97  KG
