IBT3600C 6.4” Industrial Panel PC

Feature

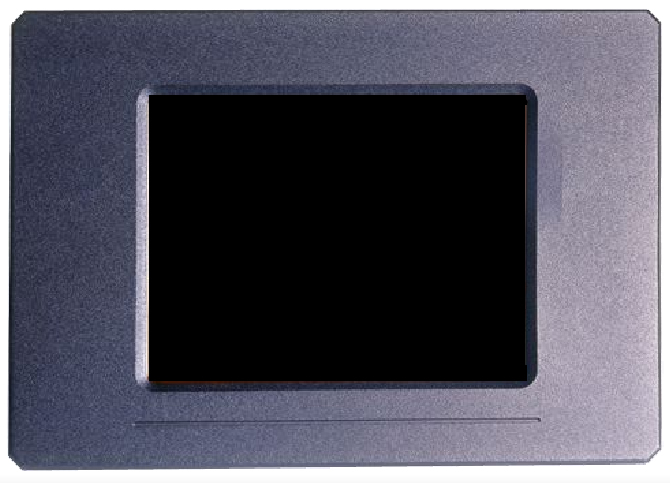

Aluminum front panel

6.4" high brightness TFT color panel display

Built-in touch screen, mainboard, 42W AC-DC adapter

Provides VIA Eden 500/667MHz CPU (500MHz fanless)

Onboard graphics, ethernet, audio controller

CF, TV-Out, COM, USB

2.5" HDD space x 1

4cm ball bearing cooling fan x 1

Open frame type (optional)



IBT3600C SPECIFICATIONS
CPU	VIA Eden 500/667MHz CPU (500MHz fanless)
Memory	One SO-DIMM socket supports up to 512MB
Chipset	VIA VT8606/VT82C686B
Touch Screen	6.4" resistive touch screen
Display	Onboard graphics controller; provides TV-Out function
Ethernet	Onboard 10/100 Based LAN controller
Audio	Onboard 3D audio controller
Storage	Type I/II CF adapter x 1
	2.5" HDD space x 1
Serial Port	Serial RS232 COM port x3
USB	USB port x 2
Keyboard/Mouse	PS/2 6-pin Mini DIN
BIOS	AMI PnP Flash BIOS
Watchdog Timer	Sets 1/2/10/20/110/220 seconds activity trigger with Reset or NMI
Power In	42W AC-DC adapter
Thermal System	4cm ball bearing cooling fan x 1
EMC	CE, FCC
Front Panel Protection	IP65
Temperature	0~+45°C (operating); -20~+70°C (storage)

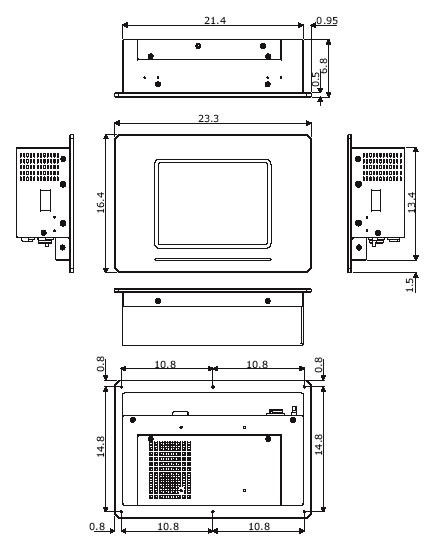

Dimensions	23.3(L) x 6.8(W) x 16.4(H) cm

Panel Specifications Screen Size: 6.4 inches Display Format: R x 640, G, B x 480 Pixel Pitch: 0.1905(H) x 0.1905(V) m/m Pixel Pitch: 0.2025(H) x 0.2025(V) m/m Brightness: 400 cd/m² Contrast Ratio: 400:1 MTBF: 15,000 hrs. Order Information IBT3600C - 6.4" Panel PC w/TFT Panel, Touch Screen,, 40W AC-DC Adapter
