IBT3601C 7” Industrial Panel PC
Feature
Aluminum front panel
7" TFT color panel display
Built-in touch screen, mainboard, VIA Eden 667MHz/1GHz CPU
+5V/+12V power adapter
Onboard graphics, ethernet, 3D audio controller

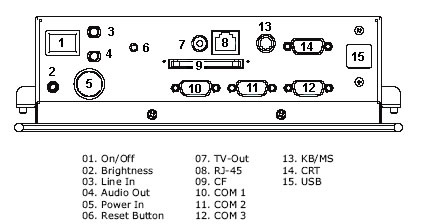

CompactFlash card adapter, PCMCIA adapter, TV-Out, DOC, COM, USB port (by mainboard)
One 2.5" HDD space
Open frame type (optional)
| IBT3601C SPECIFICATIONS |
| CPU |
VIA Eden ESP10000 667GHz embedded CPU (PCB VER:1.x) |
| Memory |
One SO-DDR socket supporting up to 1GB |
| Chipset |
VIA CLE266/VT8235
|
| I/O Chipset |
Winbond W83697UF |
| CompactFlash |
One, Type II IDE interface adapter |
| PCMCIA |
Two PC Card or CardBus slots |
| PCI Slot |
One, Type I mini PCI slot
|
| VGA |
VIA CLE266 integrated S3 3D supporting AGP Bus and Hardware MPEG-2 |
| TV-Out |
Supports PAL or NTSC TV systems |
| Ethernet |
RealTek RTL8139DL 10/100 Based LAN |
| Audio
|
AC97 3D audio controller |
| IDE |
One 2.0-pitch 44-pin IDE connector |
| Serial Port |
16C550 UART-compatible RS-232 x 4 serial ports with 16-byte FIFO |
| USB |
Four internal USB2.0 ports |
| Keyboard/Mouse |
PS/2 6-pin Mini DIN |
| BIOS |
Award PnP Flash BIOS (PCB Ver:1.x) |
| |
AMI PnP Flash BIOS (PCB Ver:2.x) |
| Watchdog Timer |
Software programmable time-out intervals from 1~256 sec. |
| CMOS |
Battery backup |
| Temperature |
0 ~+45°C (Operating), -20 ~+70°C (Storage) |
| EMC |
FCC/CE |
| Front Panel Protection |
IP65 compliance |
| Power Adapter |
42W AC-DC adapter |

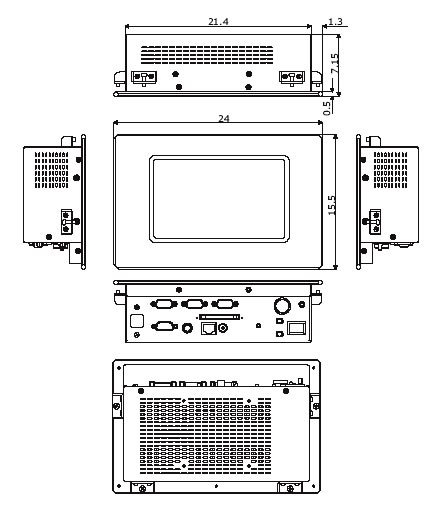

| Dimensions |
23.3(L) x 6.8(W) x 16.4(H) cm |
 |
|
Panel Specifications
Screen Size: 7 inches
Display Format: R x 800, G, B x 480
Pixel Pitch: 0.1905(H) x 0.1905(V) m/m
Color: 262K
Brightness: 600 cd/m²
Contrast Ratio: 400:1
MTBF: 15,000 hrs.
Order Information
IBT3600C - 7" Industrial Fanless Touch-Screen Panel PC with CF Reader Perfect Accessories and Options:
