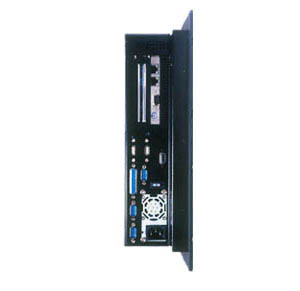

IBT 6017P - 17 inch Industrial Panel PC
Feature
Aluminum front panel
17" TFT color panel display
Built-in touch screen, OSD key, HPCI-2SP B/P, 180W ATX P/S
Provides Intel® Pentium® 4/Celeron® D (by M/B), Wireless LAN module (optional)
Onboard graphics, dual ethernet controller (by M/B)
Parallel, COM, USB, PCI expansion slot x 1 (by M/B)
2.5" HDD space x 1, 3.5" HDD/FDD space x 1, slim CD-ROM space x 1
4cm ball bearing cooloing fan x 2, 6cm ball bearing cooling fan x 1
| IBT5019Q SPECIFICATIONS |
| CPU |
Intel® Pentium® 4/ Celeron® D processor in the LGA775 Package |
| Memory |
Two DDRII sockets supports max. up to 2GB |
| Chipset |
Intel® 915GV/ICH-6 |
| Backplane |
PICMG slot x 1 or PCI-ISA slot x 1
PCI slot x 1
ATX power connector
Double-sided
264.1 x 45 mm |
| Touch Screen |
17" resistive touch screen |
| Display |
Onboard graphics controller |
| Ethernet |
Onboard dual 10/100 Based controller |
| Wireless LAN |
Provides wireless LAN module (optional) |
| Audio |
onboard HDAC CODEC with ALC883.7+2CH 3D audio controller |
| Storage |
2.5" HDD space x 1
3.5" HDD/FDD space x 1
Slim CD-ROM space x 1 |
| Parallel |
Standard parallel port x 1 |
| Serial Port |
1 ports |
| USB |
USB2.0 ports x 3 |
| Keyboard / Mouse port |
PS/2 6-pin Mini DIN |
| BIOS |
Award BIOS with 4Mb Flash EEPROM |
| Watchdog Timer |
Software programmable time-out intervals from 1~255 sec. |
| Thermal Solution |
4cm ball bearing cooling fan x 2
6cm ball bearing cooling fan x 1 |
| Power Supply |
300W power supply (450Watts Optional) |
| Temperature |
0~+45°C (operating); -20~+70°C (storage) |
| Dimensions |
47.0(L) x 9.12(W) x 37.0(H) cm |
| EMC |
CE, FCC |
|
 |
Panel Specifications
Screen Size: 17 inches
Outline Dimension: 1280 x 1024 pixels
Pixel Pitch: 0.264(H) x 0.26(V) m/m
Color: 16.7M colors
Brightness: 300 cd/m²
Contrast Ratio: 800:1
|
|
Order Information
IBT6017L - 17" Panel PC w/TFT Panel, Touch Screen, Intel® 915GV/ICH-6, 180W ATX P/S
IBT6017P - 17" Panel PC w/TFT Panel, Touch Screen, Intel® 915GV/ICH-6, 180W ATX P/S
Packing List:
Matel Stand, CPU, Memory Module, Wireless LAN Module, HDD, FDD, CD-ROM
|
|
|
|
|
|
