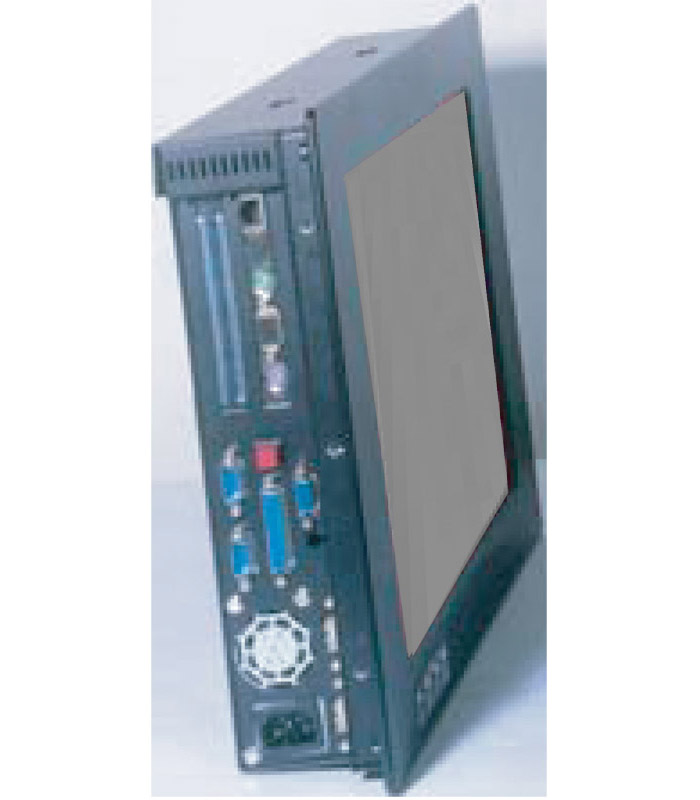

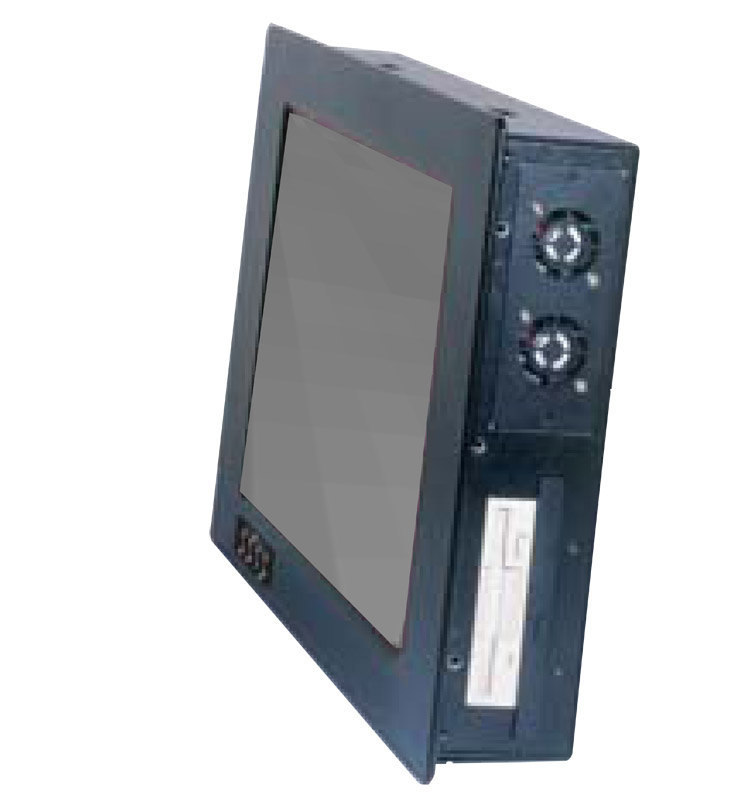

IBT6171/6172 15" Industrial Panel PC
Feature
  • Aluminum front panel
  • 15" TFT color panel display
  • Built-in touch screen, BS-669, HPCI-2SP B/P, 180W ATX P/S
  • Provides mainboard, Intel® Pentium® 4 processor, Function Keys
  • Onboard graphics controller (by mainboard)
  • Onboard Ethernet controller (by mainboard)
  • DOC, two COM, one parallel, two USB, one PCI expansion slot (by mainboard)
  • One 2.5" HDD, one 3.5" HDD/FDD and one slim CD-ROM spaces
  • Two 4cm ball bearing cooloing fans
    • IBT6171 SPECIFICATIONS
    CPU PGA 478 for Intel Pentium 4 up to 2.8GHz CPU with Hyper-Threading Technology
    Memory Two DDR sockets supporting up to 2GB (optional)
    OSD VGA to Panel transfer card, supporting OSD function with 5 front functions keys
    Touch Screen 15" resistive touch screen
    System Board Industrial ATX motherboard
    VGA VIA VT8751A / Intel display controller with 8MB/16MB/32MB (default) memory
    LAN VIA VT6103 / Intel 10/100 Based LAN
    Wireless LAN One wireless LAN module
    Audio AC97 3D audio controller with 2W power amplifier
    HDD/FDD/CD-ROM One 3.5" HDD and one slim CD-ROM spaces
    Parallel One enhanced bi-directional parallel port supporting SPP/ECP/EPP
    Serial Port 2 ports
    USB USB2.0 ports x 2
    Keyboard / Mouse port PS/2 6-pin Mini DIN
    BIOS Award BIOS with 4Mb Flash EEPROM
    Watchdog Timer Once a problem is detected the system will reset the configurations and reboot the system after five seconds
    Thermal Solution Two 4cm ball bearing cooling fans
    Power Supply 180W power supply
    Temperature Operating: 0~50°C
    Storage: -20~+60°C

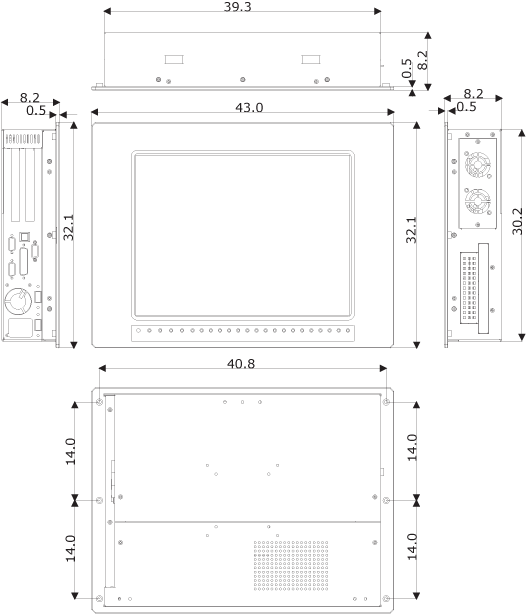

    Dimensions 43.0 x 8.2 x 32.1 cm
    Panel Specifications
    • Screen Size: 15 inches
    • Display Format: 1024 x 768 pixels
    • Pixel Pitch: 0.3075(H) x 0.3075(V) m/m
    • Color: 262K
    • Brightness: 250 cd/m2
    • Contrast Ratio: 200:1(typ)
    • MTBF: 30,000 hrs

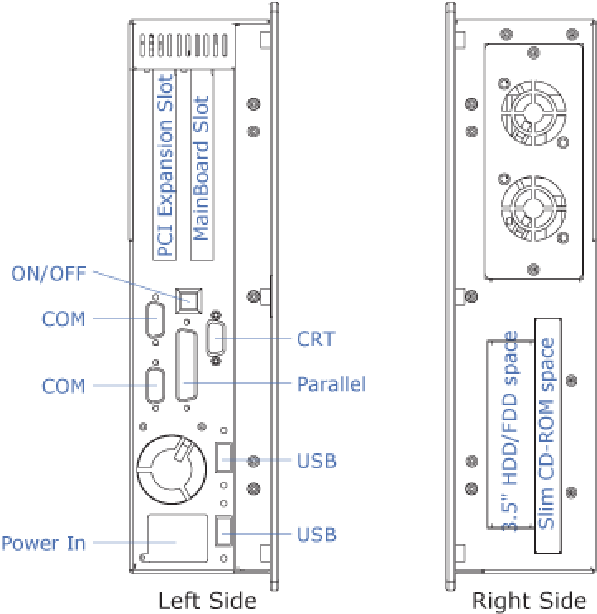

    mecanic

    Order Information
    IBT6171 - 15" Panel PC w/TFT Panel, Touch Screen, 180W ATX P/S Pentium 4
    IBT6172 - 15" Panel PC w/TFT Panel, Touch Screen, 180W ATX P/S Pentium-M

    Accessory Options:
    Matel Stand, MainBoard, Function Keys, CPU, Memory Module, HDD, FDD, slim CD-ROM, DOC

    		 Mecanic
