IBT6671 - 17" Industrial Panel PC
Feature
Aluminum front panel
17" high brightness TFT color panel display
Pentium 4 CPU
OSD function
Built-in industrial ATX mother-board
180W power supply
VIA VT8751A / Intel display controller
VIA VT6103 / Intel 10/100 Based LAN
Wireless LAN module
AC97 3D audio controller with 2W power amplifier
One COM, one parallel, two USB connectors
One 3.5" HDD and one slim CD-ROM spaces
Two 4cm ball bearing cooling fans
17" touch screen resistive
| IBT6671 SPECIFICATIONS |
| CPU |
PGA 478 for Intel Pentium 4 up to 2.8GHz CPU with Hyper-Threading Technology
|
| Memory |
Two DDR sockets supporting up to 2GB (optional) |
| OSD |
BS-669 VGA to Panel transfer card, supporting OSD function |
| Touch Screen |
17" resistive touch screen (optional) |
| System Board |
Two Intel® 82599 Fast Ethernet Controller |
| VGA |
VIA VT8751A / Intel display controller with 8MB/16MB/32MB (default) memory |
| LAN |
VIA VT6103 / Intel 10/100 Based LAN |
| Wireless LAN |
One wireless LAN module |
| Audio |
AC97 3D audio controller with 2W power amplifier |
| HDD/FDD/CD-ROM |
One 3.5" HDD and one slim CD-ROM spaces |
| Parallel |
One enhanced bi-directional parallel port supporting SPP/ECP/EPP |
| Serial Port |
1 ports |
| Game Port |
One game port |
| USB |
USB2.0 ports x 2 |
| Keyboard / Mouse port |
PS/2 6-pin Mini DIN |
| BIOS |
Award BIOS with 4Mb Flash EEPROM |
| Watchdog Timer |
Once a problem is detected the system will reset the configurations and reboot the system after five seconds |
| Thermal Solution |
Two 4cm ball bearing cooling fans |
| Power Supply |
180W power supply |
| Temperature |
Operating: 0~50°C
Storage: -20~+60°C |
| Dimensions |
47.0 x 37.1 x 9.68 cm |
Panel Specifications
- Display Format: 1280 x 1024 pixels
- Pixel Pitch: 0.264(H) x 0.264(V) m/m
Order Information
IBT6671- 17" Industrial Panel PC with Touch-Screen, Wireless LAN
Options:
WM-ELSJ07 - Wall mount 13" to 27" Pivot Arm LCD Mount
|

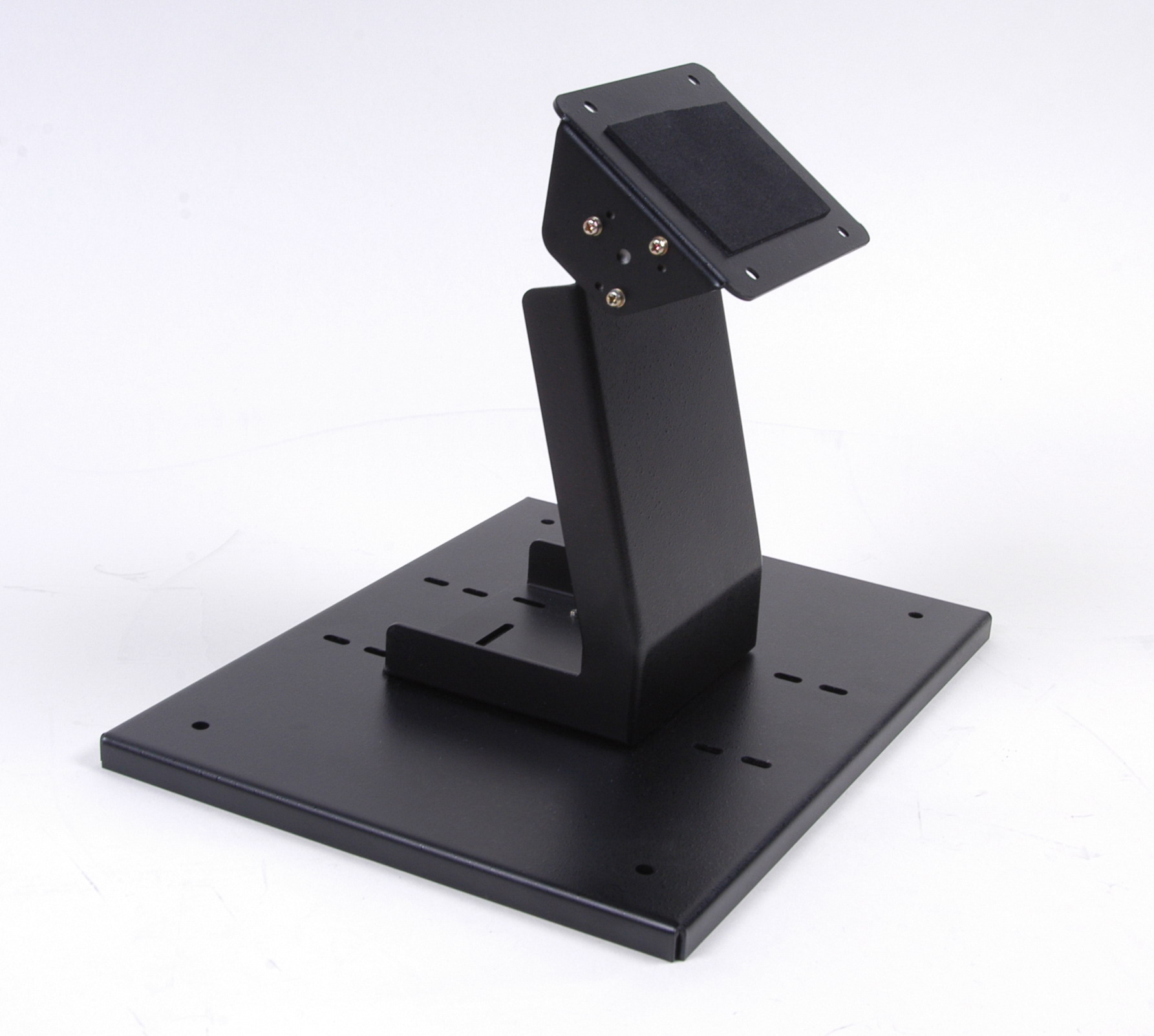

 Optional Metal Stand
 Mounting Brackets Installation: |
|
|
|
|
|
