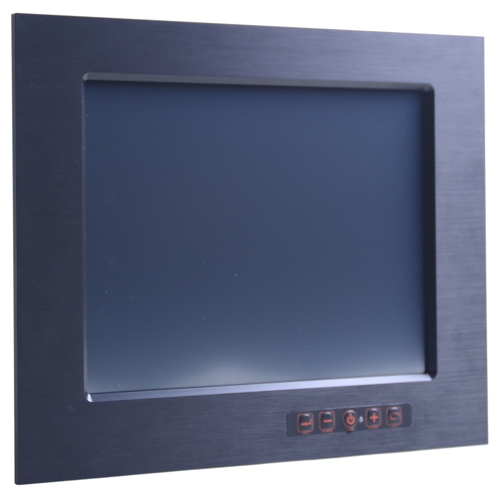

LPC12-RT - 12" TouchScreen Panel Display
Feature
Resistive Touch
5 Wire Resistive Touch
Fast response time: 25 ms for Tr and 10 ms for Tf
Mounting holes on stand bottom to be locked for security
Digital, multilingual on-screen display (OSD).
High quality and rugged design for reliability and stability, perfect for high standard industries.
VESA mount
AC and DC co-exist to maximize the input flexibility
| LPC12-RT SPECIFICATIONS |
| LCD Display |
12.1” TFT Active Matrix Panel , LED back light |
| Dimensions |

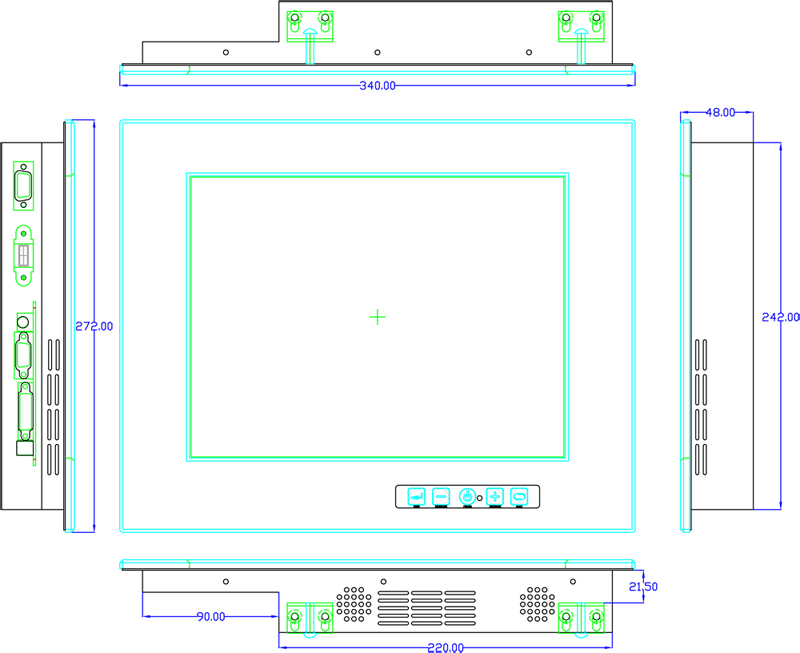

340 x 272 x 48 mm / 13.4” x 10.7” x 1.9” |
| Display Size |
246 x 184.5 mm / 9.7” x 7.3” |
| Pixel Pitch |
0.3075(H) x 0.3075(V) mm |
| Touch Screen |
5 wires resistive touch standard |
| Display mode |
VGA 640x480 (60/72/75Hz)
SVGA 800x600 (60/72/75Hz) |
| Max. Resolution |
800x600 |
| Contrast Ratio |
700 : 1 (Typical) |
| Brightness |
450 cd/m2(Typical |
| Response Time |
25mS(Rising), 10mS (Falling )(Typical) |
| Display Colors |
16.2M(dithering) |
| Viewing Angle |
+80° ~ -80°(L/R), +65° ~ -75°(U/D) (Typical) |
| LED Life time |
50,000 hours |
| Input Signal |
Video: R.G.B Analog 0.7V Peak-to-Peak |
| |
Sync: TTL Positive or Negative |
| Signal Connector |
VGA & DVI-D |
| Audio System |
2 channels speaker , 2W per Channel |
| Power Supply |
Universal 90-240V, 12V/ 35W |
| Weight (Net) |
3 Kg(6.6Lbs) |
| Certification |
FCC-B, CE, UL, CSA, TUV , RoHS compliance |
| VESA mount |
VESA mountable , support 75mm x 75mm and 100mm x 100mm |
| Housing |
Black Aluminum Front Bezel |
|
  |
|
|
|
|
|
