Mon-1900W5R - 19" TouchScreen Panel Display
Feature
Resistive Touch
5 Wire Resistive Touch
Fast response time: 25 ms for Tr and 10 ms for Tf
Mounting holes on stand bottom to be locked for security
Digital, multilingual on-screen display (OSD).
High quality and rugged design for reliability and stability, perfect for high standard industries.
VESA mount
| MON-1900W5R SPECIFICATIONS |
| LCD Display |
19" diagonal WXGA TFT LCD Panel |
| Dimensions |

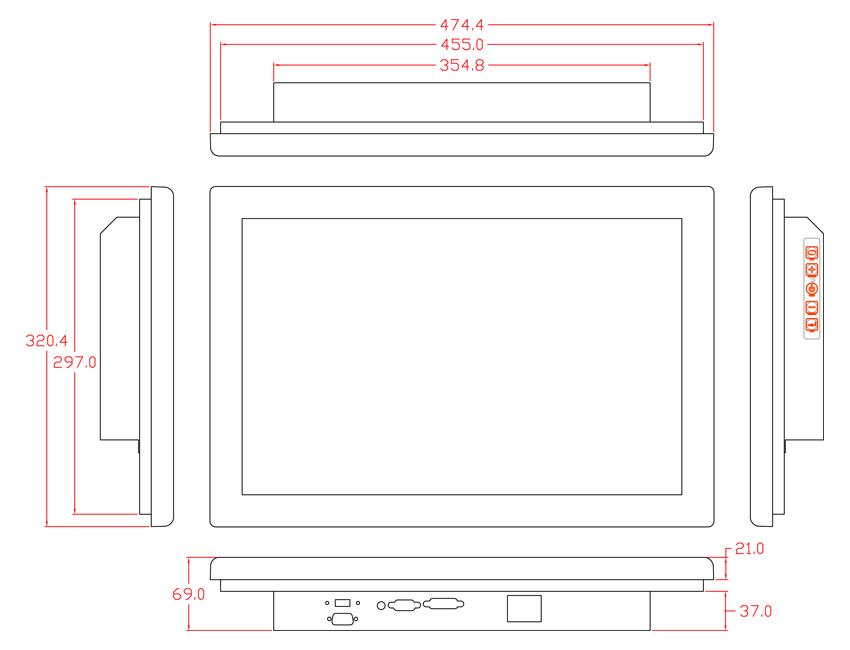

474.4 X 320.4 X 69.0 mm / 18.7” X 12.6“ X 2.7” |
| Display Size |
414.4 X 260.4 mm / 16.3” x 10.3” |
| Pixel Pitch |
0.2835 3 (H) X 0.2835 (V) mm |
| Touch Screen |
Resistive Touch |
| Display mode |
VGA 640x480 (60/72/75Hz)
SVGA 800x600 (60/72/75Hz)
XGA 1024x768 (60/72/75Hz)
SXGA 1280x1024 (60/75Hz)
WXGA+ 1440x900 (60/75Hz) |
| Max. Resolution |
1440 x 900 |
| Contrast Ratio |
800 : 1 (Typical) |
| Brightness |
300 cd/m2 (Typical) |
| Response Time |
3.6mS(Rising), 1.4mS (Falling )(Typical) |
| Display Colors |
16.2M(dithering) |
| Viewing Angle |
+80° ~ -80°(L/R), +65° ~ -75°(U/D) (Typical) |
| LED Life time |
50,000 hours |
| Input Signal |
Video: R.G.B Analog 0.7V Peak-to-Peak |
| |
Sync: TTL Positive or Negative |

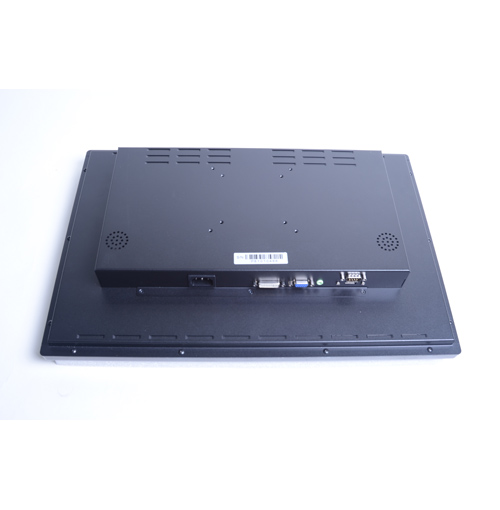

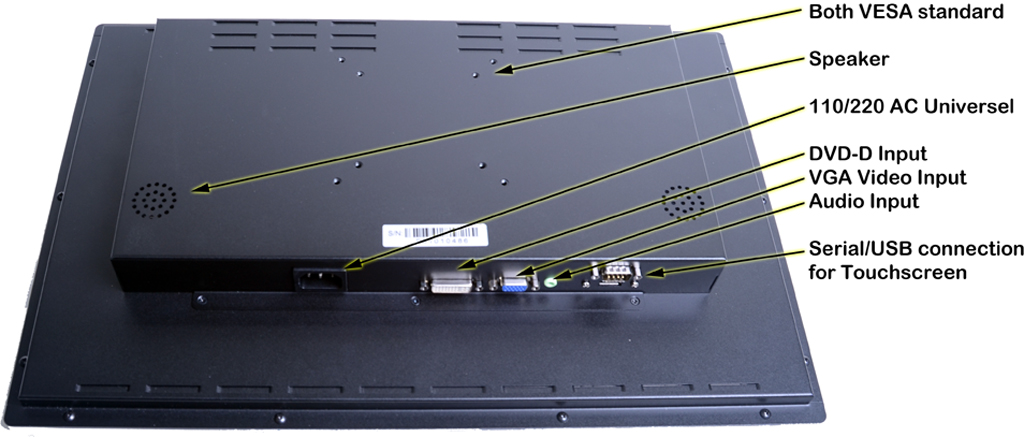

| Signal Connector |
VGA & DVI-D |
| Side Control |
Power Switch, Menu, Select(up, Down),Auto adjust |
| OSD |
Auto-Adjustment, Contrast, Brightness, Clock, Phase, H-Position , V-position, Color Temperature, Load default |
| Plug & Play |
DDC1/2B |
| Audio System |
2 channels speaker , 5W per Channel |
| Power Supply |
Universal 90-240V, 12V/ 35W |
| Weight (Net) |
6 Kg |
| Certification |
FCC-B, CE, UL, CSA, TUV , RoHS compliance |
| VESA mount |
VESA mountable , support 75mm x 75mm and 100mm x 100mm |
| Housing |
Black Aluminum Front Bezel |
| Table stand ( Optional ) |

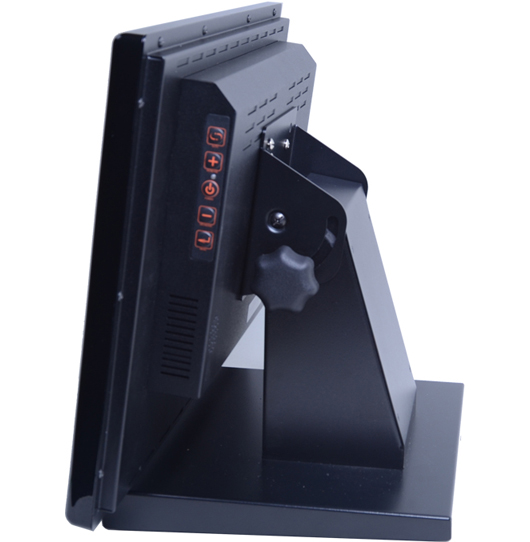

Optional table stand , Tilting angle 0°~90° Countertop Stand |
| Cable provided |
AC power cord , VGA cable , USB touch screen cable , RS-232 touch screen cable |
|
  |
|
|
|
|
|
|
